5 Year Guarantee - The DML305 cast iron lathe represents a new benchmark in high quality midi lathes and is perfect for the user with minimal space or as a second lathe for demonstrations and shows.
- 5 Year Guarantee
- Cam Lock Toolrest
- 6 Speed
Watch the Record Power Lathe Buyers Buyers Guide

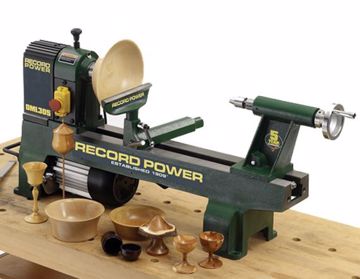

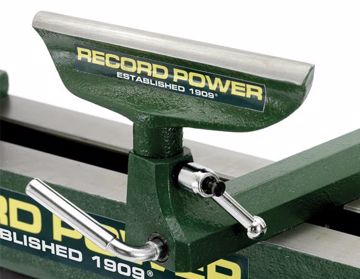

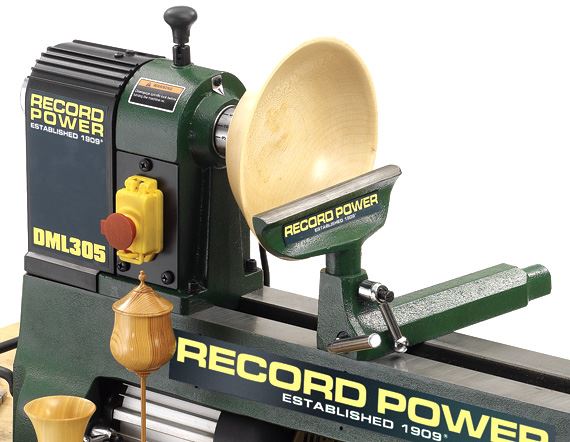

The DML305 cast iron lathe represents a new benchmark in high quality midi lathes and is perfect for the user with minimal space or as a second lathe for demonstrations and shows. The bed is made from finely ground cast iron for weight and rigidity and fitted with cam locking tool rests that clamp easily and solidly to the bed with one handed operation.
The machine has 393 mm between centres as standard and an optional bed extension can be added to increase this capacity.
The swing over the bed is 305 mm and the motor is 1/2 hp, providing plenty of power for the capacities of these machines. The spindle has an M33 thread to ensure a wide range of Record Power accessories can be fitted.

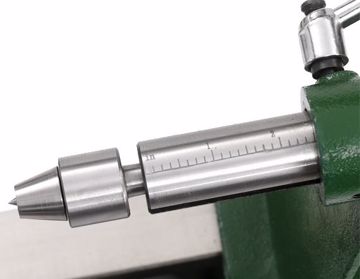

This lathe is extremely well finished with polished metal handles, spindle locks with indexing and graduated markings on the tailstock barrels. Many of these features are normally only found on expensive professional lathes.
Optional legs can be added if necessary when cast bed extensions are used in conjunction with the stand.
Specifications:
- Maximum bowl diameter: 305 mm (12")
- Maximum between centres: 393 mm (15")
- Maximum swing over bed: 305 mm (12")
- Spindle speeds: 350, 670, 1025, 1500, 2225 & 3250 rpm
- Motor: 1/2 hp
- Thread: M33 x 3.5
- Taper: 2 Morse Taper
- Weight: 39 kg
- Size: H455 x L1030 x D280 mm
