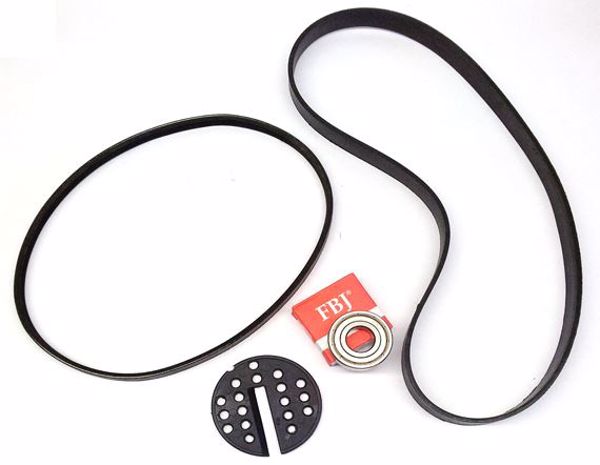

Spare Parts For Record Power Bandsaws

  • Drive Belts
  • Wheel Tires
  • Table Inserts
  • Wheel Bearings


Spare parts for Record Power bandsaws. Including the older RSBS & RPBS models.

These consumable parts may also fit other models not listed so if you are unsure feel free to contact us. Tel: 01234 217417 / 359808 E-mail: sales@bedfordsaw.co.uk

Drive Belt For - Record Power Machines

Picture of Drive Belt For - Record Power Machines
£9.99 ex VAT
*
  • Replaces Factory Original
  • High Quality
  • Supplied With Replacement Circlip

Please choose your model from the drop down menu.

*Please note: The RSBS10, BS10 & BS250 belts are smaller than the other models.

High quality poly v drive belt to replace the original belt running from the motor to the pulley on Record Power bandsaws.

Instructions: Take the tension off and remove the blade. Using a pair of circlip pliers remove the circlip on the bottom wheel. There is nothing else holding the wheel in place, so it should simply slide off the shaft. Slacken the motor only which will remove tension from the belt. Replace the belt and retension by sliding the motor back into place. Do not over tension. Replace wheel, circlip and blade.

Motor Starter Capacitor - For Record Power Bandsaws

Picture of Motor Starter Capacitor - For Record Power Bandsaws
£10.42 ex VAT
*
  • Direct Replacement
  • 450VAC
  • 15 or 25 UF

Replacement leaded motor starter capacitor for Record Power Bandsaws.

If your bandsaw makes a humming sound and doesn't work when you press the start button, this part may be the cause.

This unit is on the side of the motor and connects with two wires.

Bandsaw Tyre/Tire - For Record Power Bandsaws

Picture of Bandsaw Tyre/Tire - For Record Power Bandsaws
£12.08 ex VAT
*

Factory replacement wheel tyre for the drive wheels on Record Power Bandsaws. This is the rubber tyre/tire that the blade runs on and they perrish after time.

Choose your machine model from the drop down list and also the wheel type - aluminium (silver) or cast iron (black).

Supplied With Replacement Circlip

Note: Wheel NOT Included

* Sold individually

Wheel Bearing - For Record Power Machines

Picture of Wheel Bearing - For Record Power Machines
£4.58 ex VAT
*
  • High Quality UNM
  • 40mm OD
  • ZZ Double Shield
  • Deep Groove Ball Bearings

Replacement bearing for the center of the aluminium wheels that the blade runs on. Sold individually.

Table Insert - For Record Power Bandsaws

Picture of Table Insert - For Record Power Bandsaws
£9.17 ex VAT
*

Replacement insert for the center of your bandsaws table.

Round plastic with slot for the blade to run through and holes to allow dust to escape.

Belt Tension Pulley For - Record Power Machines

Picture of Belt Tension Pulley For - Record Power Machines
£14.99 ex VAT
*
  • Replaces Factory Original
  • Includes Bearings

Tension pulley for Record Power RSBS12, RSBS14, BS12, BS300 and BS350 Bandsaws. Machined steel housing with two high quality sealed bearings.

Instructions: Take the tension off using the hand wheel and remove the belt. Using a pair of circlip pliers remove the circlip and slide the pulley off. There is nothing else holding the pulley in place, so it should simply slide off the shaft.

Blade Guide Upgrade Kit For - Record Power RSBS12, RPBS12 & DMB65

Picture of Blade Guide Upgrade Kit For - Record Power RSBS12, RPBS12 & DMB65
£60.00 ex VAT
*
  • RSBS12 and DMB65 Only
  • Complete Kit
  • Billet Aluminium Blocks
  • Includes Drill Template
  • Includes Bearings
  • Increase Depth Of Cut By 18mm


Upgrade your RSBS12, RPBS12 or DMB65 upper and lower cast blade guides with this fully adjustable, universal 6x bearing, billet aluminium system.


This complete 6x bearing kit replaces the upper and lower blade guides with billet blocks. Hex screws on the back of each block and sliders on each bearing allows full and fine adjustment. This also contains a new aluminium section rail. This stronger, easier to adjust system comes complete with bearings.

By fitting this kit your machine will also gain almost 3/4inch depth of cut (18mm) as the upper guide is shorter in height.

Includes two page colour fitting instructions

More Images Here

Note: Only fits the RSBS12, RPBS12 and DMB65 Models - New hole(s) are required (instructions and drill template included)

New Replacement Motor For - Record Power RSBS12 & DMB65 Bandsaw

Picture of New Replacement Motor For - Record Power RSBS12 & DMB65 Bandsaw
£137.50 ex VAT
*
  • Brand New
  • Direct Replacement
  • 800W/1HP Output
  • 230V

Brand new direct replacement motor for your Record Power RSBS/RPBS 12 or DMB65 bandsaw.

Measurement between bolt holes: 70mm approx
Main Collar width: 80mm approx

More Images Here

Technical Specifications:
Motor 230V - 800W(P1) / 1HP
50Hz - 550W(P2)
4.0A - Cont. Rtg.
TEFV - 1400 min-1

REPLACING POWER SUPPLY CABLE
Replacement of the power supply cable should only be done by a qualified electrician.
