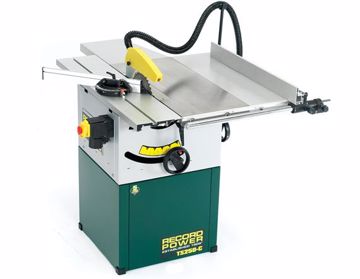

This innovative table saw has been designed to provide the serious home cabinet or furniture maker with a solid, accurate and versatile machine in a compact form.
- 5 Year Guarantee
- Cast Iron Main Table
- Powerful 2 hp Motor
- Includes Sliding Table, Mitre Fence and RH extension
This innovative table saw has been designed to provide the serious home cabinet or furniture maker with a solid, accurate and versatile machine in a compact form. Boasting many features only found on much more expensive table saws, this machine offers real value for money without compromising quality or flexibility. The table is made from finely ground cast iron, providing weight, rigidity and an unbeatable working surface. Importantly, many machines in this sector only have an 8” blade with small capacity but the TS250C has a 10” blade, enabling an impressive 80 mm depth of cut. The blade is powered by a superior quality belt driven 2 hp induction motor for smooth, quiet, long lasting performance. The rack and pinion rise and tilt features two separate handles for rise and fall of the blade and for blade tilt. The whole saw unit is cast iron and is supported on the welded steel frame by two large cast iron trunnions, machined for smoothness and accuracy. The solid rip fence features a heavy extrusion mounted on a heavy cast iron mount with micro adjustment, which in turn is fitted to a solid steel bar for maximum rigidity and support. The machine is supplied on a solid cabinet base with an optional jockey style wheelkit available.
On the Inside: Not all machines are the same. Whilst looking impressive from the outside, it is what’s on the inside that really counts and Record Power table saws are much more heavily made than competition at the same price. Make sure you research alternatives thoroughly and look inside if you can.
Rise and Fall: Separate rise and fall table tilt handwheels - providing smooth and accurate control via thick steel bars with rolled acme threads for fast smooth action.

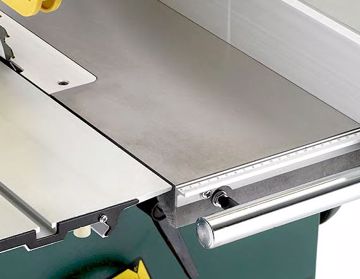

High Quality Sliding Beam: The industrial solution for precision cross cutting. The TS250C has a superior beam system working right up to the blade for accuracy and mounted directly to the main saw frame. Much more accurate and stable than bolt on sliding table systems.
Robust Fence System: The heavy extrusion is fixed to a solid cast iron mount and fitted with micro-adjustment. The whole unit slides smoothly on an industrial style solid steel bar, which has adjustment that will stay put once set.
Specifications:
Maximum Blade Size: 250 mm
Blade Bore: 30 mm
Blade Speed: 4000 rpm
Maximum Rip Capacity: 305 mm
Maximum Rip with Right Hand Extension: 610 mm
Sliding Carriage Stroke: 620 mm
Blade Tilt: 0 - 45º
Maximum Depth of Cut 90º: 80 mm
Maximum Depth of Cut 45º: 56 mm
Table Height from Floor: 890 mm
Motor: 2 hp
Weight: 110 kg
Size: H1090 x W1330 x D910 mm
