Sorry - this product is no longer available
£849.98 inc VAT
£799.00 inc VAT
- 5 Year Guarantee
- Cam Lock Toolrest
- Electronic Variable Speed

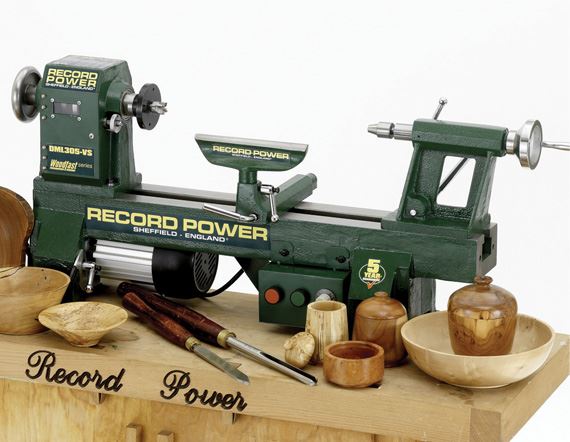

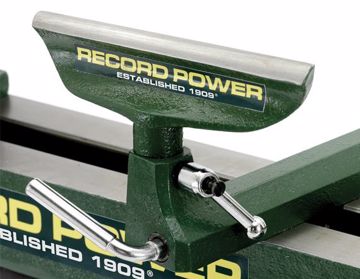

The DML305-VS cast iron lathe represents a new benchmark in high quality midi lathes and is perfect for the user with minimal space or as a second lathe for demonstrations and shows. The bed is made of finely ground cast iron for weight and rigidity and fitted with cam locking toolrests that clamp easily and solidly to the bed with one handed operation.
It gives 393mm between centres as standard and optional bed extensions can be added to increase this capacity. The swing over the bed is 305mm and the 1/2hp motor provides plenty of power for the capacity of the machine. The spindle is 3/4” x 16tpi thread to ensure a wide range of Record Power accessories can be fitted.
The lathe is extremely well finished with polished metal handles, spindle lock with indexing and graduated markings on the tailstock barrel. Many of these features are normally only found on expensive professional lathes.

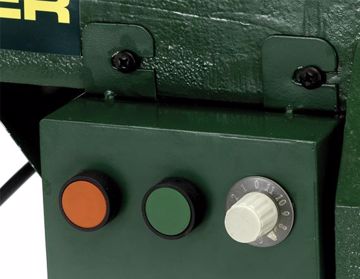

The DML305-VS features high quality full electronic variable speed control. This system should not be confused with cheap and simple rheostat versions which have poor torque and can cause overheating of the motor. The DML305-VS uses a three phase motor and inverter system, similar to that used in the CL4. The high quality inverter converts the single phase supply to three phase, enabling smooth and stepless control through a wide range of speeds. This is an industrially proven method and provides the low end torque that is so essential to the woodturner but is sadly lacking in so many poorer quality alternatives.
Specifications:
- Maximum bowl diameter: 305 mm (12")
- Maximum between centres: 393 mm (15")
- Maximum swing over bed: 305 mm (12")
- Spindle speeds: 400 - 3850 rpm
- Motor: 1/2 hp
- Thread: 3/4" x 16 TPI
- Taper: 1 Morse Taper
- Weight: 49 kg
- Size: H455 x L1030 x D280 mm
